Fill-Rite 12-Gauge Battery Cable 18 ft for 12V Pumps — 5 ft Ground Lead, Preinstalled Ring Terminals

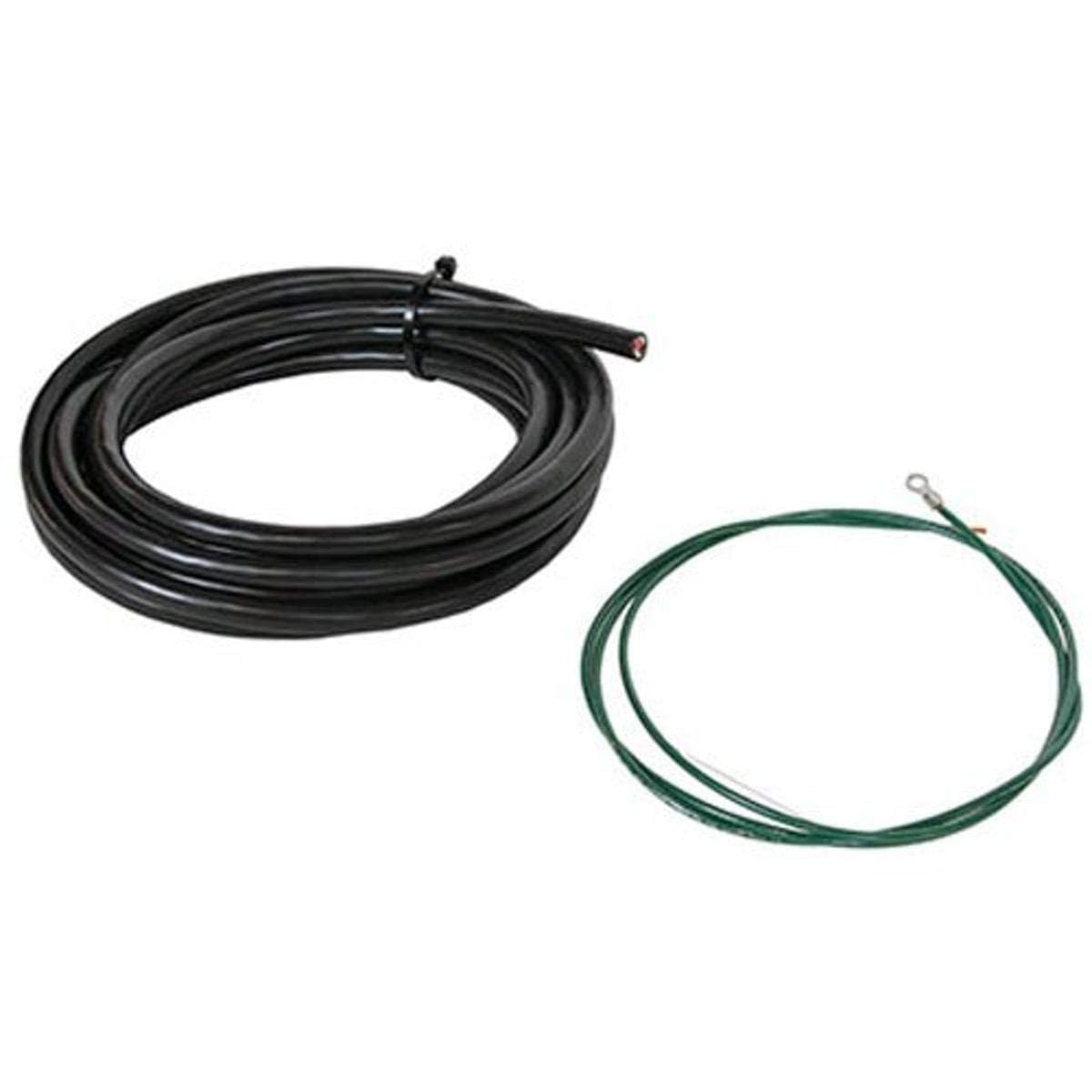

The Fill-Rite 1200R9067 is an 18-foot, 12-gauge two-wire battery cable built to reliably feed 12 V DC Fill-Rite transfer pumps with a dedicated 5-foot ground lead and preinstalled ring terminals.

This heavy-duty replacement cable connects your vehicle or auxiliary battery to Fill-Rite 1200, 2400, and 4200 series DC pumps, combining copper conductors and polyethylene insulation to withstand outdoor use. Manufactured in the USA, the assembly is intended as a direct power link for mobile fuel transfer systems where durability, easy installation, and dependable conductivity matter most. The preattached ring terminals and protective jacket make it a straightforward swap for worn or undersized wiring.

How does this cable improve pump reliability?

Using the correct wire size and robust materials reduces voltage drop and heat buildup, keeping pump motors operating within their designed electrical range. The Fill-Rite 1200R9067’s 12-gauge copper cores provide consistent current flow for typical pump loads, while the extra ground lead ensures a solid return path.

• 12-gauge copper conductors minimize resistance for stable power delivery
• Polyethylene jacket resists abrasion, moisture, and UV exposure
• 5-foot ground lead simplifies secure grounding to chassis or battery negative
• Preinstalled ring terminals speed up installation and prevent loose connections

Will it fit my Fill-Rite pump and vehicle battery setup?

The 1200R9067 is sized and configured specifically for 12 V Fill-Rite 1200, 2400, and 4200 series DC transfer pumps, and is compatible with most automotive and marine battery posts. With 18 feet of run, it accommodates common placements between batteries and pump mounts on trucks, trailers, and service rigs.

• Designed for Fill-Rite 1200/2400/4200 series 12 V DC pumps
• 18-foot length covers typical pump-to-battery distances without extensions
• Ring terminals match standard battery post and pump terminal sizes
• Works with most vehicle, trailer, and portable battery systems

How do I install and maintain the 1200R9067 cable?

Installation is straightforward: route the cable away from moving parts and hot exhaust surfaces, secure it with clamps, and attach the ring terminals to the battery and pump posts. Periodic inspection of the jacket and terminal tightness keeps the connection safe and efficient in field conditions.

• Route and fasten cable to avoid chafing and heat exposure
• Ensure ring terminals are tightly bolted to battery and pump posts
• Check insulation and connections regularly for corrosion or wear
• Replace immediately if inner conductors are exposed or terminals loosen

What materials and protections are built into the cable?

The cable combines oxygen-free copper conductors for better conductivity with a tough polyethylene outer jacket that resists environmental damage. These components deliver a dependable power path while offering mechanical protection in demanding work environments.

• Copper conductors for efficient current transfer and lower voltage loss
• Polyethylene insulation guards against moisture, oils, and abrasion
• Preinstalled ring terminals provide secure, low-resistance connections
• Assembled in the USA to consistent manufacturing standards

Who is this for: The Fill-Rite 1200R9067 is intended for technicians, fleet operators, service contractors, and anyone who uses 12 V Fill-Rite transfer pumps and needs a rugged, ready-to-install power cable. It suits users replacing aged wiring, upgrading undersized runs, or building a mobile fueling rig where a reliable electrical connection is essential for consistent pump performance.
